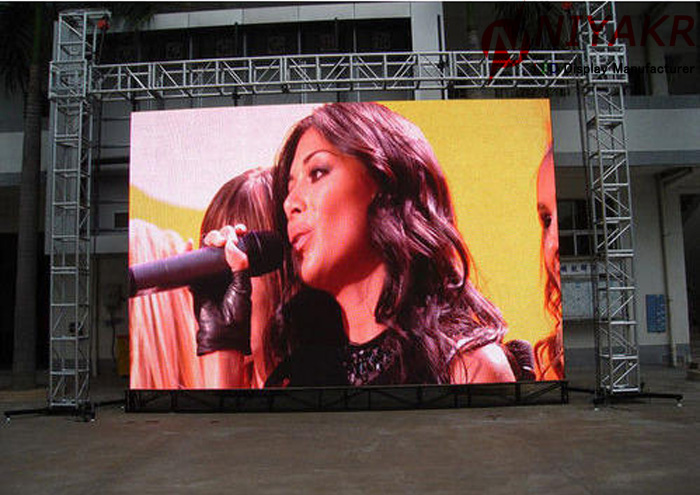

Stage Background P10 Rental LED Display Outdoor Advertising 7000 Cd/sqm
Product Advantage:
1. SMD 3 in 1 led encapsulation ensure wide view angle and slim thickness
2. Dot-to-dot maintainance, easy and quick to maintain and save much labour cost and working time
3. Made with Die-casting Aluminum material, strong configuration and lasting
4. Small panel size of 640×640mm, Super thin only with 95mm thickness, good outlooking
5. Light weight and protable, easy for collection and transportation, better for rental use
6. Rental design with locks and aviation plugs, easy to install and dismantle, easy to be combined randomly
7. Fan free design, good automatically heat dissipation, and good enviroment protection
8. Seamless spliced, good uniformity, perfect vision
9. Can be fixed installation or hung, meet the request on any scenes, for stage background , live broadcast, show, concert, banquet, message sign and commercial advertising etc.
Product Parameter:
| Model No. | NIYAKR-P10 |
| Pixel Pitch | 10mm |
| Module Size | 320mm×160 mm |
| Module Resolution(Pixel) | 32dots×16dots |
| Pixel Density | 10000dots/m2 |
| LED Type | SMD 3 in 1 |
| Pixel Configuration | 1R1G1B |
| Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
| Drive Mode | Dynamic 1/4 Duty Constant Current |
| Cabinet Size | 960×960×135mm |
| Cabinet Resolution | 96dots×96dots |
| Brightness | ≥7000 cd/m2 |
| Contrast | ≥ 2000:1 |
| Viewing Angle | 140°(Horizontal )/140°(Vertical ) |
| Best Viewing Distance | 10m |
| Grey Scale | 10bits/1024levels |
| Color Capability | 16777216 |
| Color Temperature | 5000-9300K |
| Maximum Power Consumption | 1000W/m2 |
| Average Power Consumption | 350W/m2 |
| Working Voltage | AC 220V/110V s±15% 50-60 HZ |
| Frame Frequency | 60-85 HZ |
| Refresh Frequency | 240 - 1000HZ |
| Brightness Correction | Pixel, Module, Cabinet Correction |
| Operating Temperature | Static:-40°C ~+85°C Working:-20~+65°C |
| Operating Humidity | 10-90% RH |
| LED Lifespan | 100,000 hours |
| MTBF | ≥50,000 hours |
| Computer Operation System | Win 98/ Win XP/ Win 2000 |
| Video Signal Input | RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
| Video Signal Output | RF, S-Video, GB, RGBHV, YUV, YC etc. |
| Graphics Card | DVI Graphics Card |
| Control Distance | UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
| Control System | LED studio 10.0 |
| Software | LINSN / Nova/ DB-STAR |
| Waterproof Level | IP65 |
| Installation | Wall mount, hung and stand structure |
| Out of Control Rate | 0.01 % |
